包裹 | 尺寸（毫米） | 邏輯類型 | 電源電壓 | 穩定 | 相位本底噪聲 |
QTCC230 | 2.50 x 3.20 x 1.15 | CMOS | 1.8 to 3.3Vdc | ±50ppm to ±100ppm | Contact Q-Tech |
QTCC356 | 3.20 x 5.00 x 1.20 | LVDS or LVPECL | 2.5 to 3.3Vdc | ±25ppm to ±100ppm | Contact Q-Tech |
QTCC350 | 3.20 x 5.00 x 1.20 | CMOS | 1.8 to 5Vdc | ±50ppm to ±100ppm | Contact Q-Tech |
QTCC570 | 5.00 x 7.00 x 1.40 | CMOS | 1.8 to 5Vdc | ±20ppm to ±100ppm | Contact Q-Tech |
QTCC576 | 5.00 x 7.00 x 1.50 | LVDS or LVPECL | 2.5 to 3.3Vdc | ±25ppm to ±100ppm | Contact Q-Tech |
QT1, QT2, QT3, QT14, QS1, QS2, QS3, QS14 | 9.14 x 9.14 x 6.60 | ACMOS, CMOS, HCMOS, LVHCMOS, TTL, Z | 1.8 to 15Vdc | ±5ppm to ±100ppm | -168 dBc/Hz @ 40MHz |
QT2010 | 25.4 x 25.4 x 13.5 | CMOS | 3.3Vdc | ±5ppb to ±30ppb | -176 dBc/Hz @ 10MHz |
QT2010 | 25.4 x 25.4 x 13.5 | SINE | 3.3Vdc | ±5ppb to ±30ppb | -166 dBc/Hz @ 81.27MHz |
QT21, QS21 | 15.88 x 15.88 x 3.56 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±25ppm to ±100ppm | -168 dBc/Hz @ 24MHz |
QT22, QS22 | 9.53 x 12.7 x 3.05 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±25ppm to ±100ppm | -168 dBc/Hz @ 24MHz |

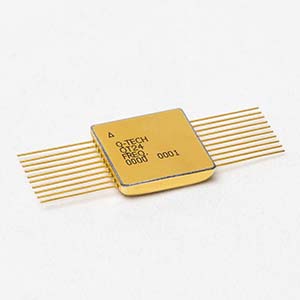

QT24, QS24 | 15.88 x 15.88 x 3.05 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±25ppm to ±100ppm | -168 dBc/Hz @ 24MHz |
QT25, QS25 | 15.88 x 15.88 x 3.81 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±25ppm to ±100ppm | -168 dBc/Hz @ 24MHz |
QT26, QS26 | 14.99 x 20.07 x 4.06 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±25ppm to ±100ppm | -168 dBc/Hz @ 24MHz |
QT28, QS28 | 9.53 x 12.7 x 3.05 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±25ppm to ±100ppm | -168 dBc/Hz @ 24MHz |
QT41, QS41, QT42, QS42, QT47, QS47 | 20.32 x 12.83 x 5.08 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±5ppm to ±100ppm | -170 dBc/Hz @ 24MHz |
QT50, QS50, QT51, QS51, QT55, QS55 | 12.83 x 12.83 x 5.08 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±5ppm to ±100ppm | -170 dBc/Hz @ 24MHz |
QT6, QS6, QT48, QS48 | 22.35 x 12.83 x 5.08 | ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±5ppm to ±100ppm | -170 dBc/Hz @ 24MHz |
QT62, QS62 | 16.51 x 16.51 x 2.16 | ACMOS, CMOS, HCMOS, LVHCMOS, TTL, Z | 1.8 to 15Vdc | ±5ppm to ±100ppm | -165 dBc/Hz @ 24MHz |
QT66, QS66 | 12.19 x 12.19 x 2.16 | ACMOS, CMOS, HCMOS, LVHCMOS, TTL, Z | 1.8 to 15Vdc | ±5ppm to ±100ppm | -165 dBc/Hz @ 24MHz |
QT70, QS70 | 14.22 x 14.22 x 2.16 | ACMOS, CMOS, HCMOS, LVHCMOS, TTL, Z | 1.8 to 15Vdc | ±5ppm to ±100ppm | -165 dBc/Hz @ 24MHz |
QT71, QS71 | 11.43 x 11.43 x 2.16 | ACMOS, CMOS, HCMOS, LVHCMOS, TTL, Z | 1.8 to 15Vdc | ±5ppm to ±100ppm | -165 dBc/Hz @ 24MHz |
QT75, QS75 | 13.97 x 8.89 x 2.92 | ACMOS, CMOS, HCMOS, LVHCMOS, TTL, Z | 1.8 to 15Vdc | ±5ppm to ±100ppm | -165 dBc/Hz @ 24MHz |
QT78, QS78 | 13.97 x 8.89 x 4.32 | ACMOS, HCMOS, LVHCMOS, TTL | 1.8 to 5Vdc | ±25ppm to ±100ppm | -166 dBc/Hz @ 80MHz |
QT80F, QT81F, QT82F, QT83F, QT84F, QT85F, QT86F, QT87F, QS80F, QS81F, QS82F, QS83F, QS84F, QS85F, QS86F, QS87F, QG80F, QG81F, QG82F, QG83F, QG84F, QG85F, QG86F, QG87F | 5.00 x 7.00 x 2.00 | CMOS, HCMOS, TTL | 1.8 to 5Vdc | ±50ppm to ±100ppm | -162 dBc/Hz @ 40MHz |
QT81, QT82, QT83, QS81, QS82, QS83, QG81, QG82, QG83 | 5.0 x 7.0 x 2.54 | HCMOS, LVHCMOS | 1.8 to 5Vdc | ±75ppm to ±100ppm | -152 dBc/Hz @ 40MHz |
QT84, QS84, QG84 | 5.00 x 7.00 x 2.00 | CMOS | 1.8 to 5Vdc | ±50ppm to ±75ppm | -166 dBc/Hz @ 16MHz |
QT80F, QT85F, QT86F, QT87F, QS80F, QS85F, QS86F, QS87F, | 5.00 x 7.00 x 2.00 | LVDS, LVPECL | 2.5 to 3.3Vdc | ±50ppm to ±100ppm | -143 dBc/Hz @ 125MHz |
QT80, QT85, QT86, QT87, QS80, QS85, QS86, QS87 | 5.00 x 7.00 x 2.00 | LVDS, LVPECL | 2.5 to 3.3Vdc | ±50ppm to ±100ppm | -143 dBc/Hz @ 125MHz |
QT88, QS88 | 8.89 x 7.37 x 4.32 | ACMOS, HCMOS, LVHCMOS, TTL | 1.8 to 5Vdc | ±25ppm to ±100ppm | -163 dBc/Hz @ 20MHz |
QT89, QS89 | 8.89 x 7.37 x 3.30 | ACMOS, HCMOS, LVHCMOS, TTL | 1.8 to 5Vdc | ±25ppm to ±100ppm | -162 dBc/Hz @ 50MHz |
QT90, QS90 | 8.89 x 7.37 x 4.83 | ACMOS, HCMOS, LVHCMOS, TTL | 1.8 to 5Vdc | ±25ppm to ±100ppm | -163 dBc/Hz @ 20MHz |
QT901S | 27.4 x 12.8 x 5.08 | SINE | 15Vdc | ±5ppm to ±100ppm | -162 dBc/Hz @ 69.4MHz |
QT906S | 22.35 x 12.83 x 5.08 | SINE | 5Vdc | ±5ppm to ±100ppm | -162 dBc/Hz @ 69.4MHz |
QT92, QS92 | 8.89 x 7.37 x 4.83 | ACMOS, HCMOS, LVHCMOS, TTL | 1.8 to 5Vdc | ±25ppm to ±100ppm | -167 dBc/Hz @ 40MHz |
QT93, QS93 | 8.89 x 7.37 x 4.83 | LVDS, LVPECL | 40MHz to 250MHz | ±25ppm to ±100ppm | -144 dBc/Hz @ 250MHz |
QT94, QS94 | 8.89 x 7.37 x 3.30 | CMOS, LVHCMOS, TTL | -5.2 to -4.5Vdc & 1.8 to 15Vdc | ±25ppm to ±100ppm | -144 dBc/Hz @ 250MHz |
QT94W, QT94P, QS94W, QS94P | 8.89 x 7.37 x 3.30 | LVDS, LVPECL | 2.5 to 3.3Vdc | ±20ppm to ±100ppm | -144 dBc/Hz @ 250MHz |
QT941S | 20.32 x 12.83 x 5.08 | SINE | 5Vdc | ±5ppm to ±100ppm | -162 dBc/Hz @ 69.4MHz |
QT957S | 24.9 x 20.5 x 5.08 | SINE | 5Vdc | ±5ppm to ±100ppm | -162 dBc/Hz @ 69.4MHz |
