Q-Tech具有4點安裝5x7晶體振蕩器

發布時間：2021-05-10 17:13:32 瀏覽：2608

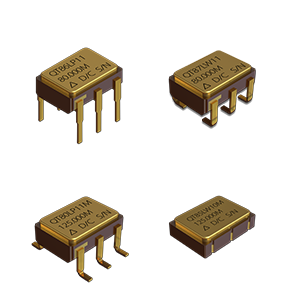

Q-Tech的5X7mm含有4點安裝晶體振蕩器，在極其小的封裝中提供最先進性的沖擊和振動靈敏度。Q-Tech振蕩器采用4點晶體安裝，這也是空間應用所必需的（至少3點）。

深圳市立維創展科技有限公司授權代理銷售Q-TECH產品，備件現貨，歡迎與業界同行合作。

詳情了解Q-Tech請點擊： http : //m.pifaye.com/public/brand/60.html

或聯系我們的銷售工程師： 0755- 83642657 QQ： 2295048674

Package	Dimensions (mm)	Market	Device Type	Logic Type	Supply Voltage	Package Type	Stability	Phase Noise Floor
QT180, QT181, QT182, QT183, QT184, QT185, QT186, QT187, QS180, QS181, QS182, QS183, QS184, QS185, QS186, QS187	5.00 x 7.00	Space	5x7 w/ 4pt Mount	ACMOS, HCMOS, LVCMOS, TTL, LVDS, LVPECL	2.5 to 5.0Vdc	5 x 7mm 4-Point Mount	±25ppm to ±100ppm	Contact Q-Tech
QT80F, QT81F, QT82F, QT83F, QT84F, QT85F, QT86F, QT87F, QS80F, QS81F, QS82F, QS83F, QS84F, QS85F, QS86F, QS87F, QG80F, QG81F, QG82F, QG83F, QG84F, QG85F, QG86F, QG87F	5.00 x 7.00 x 2.00	Military & Avionics	5x7 w/ 4pt Mount	CMOS, HCMOS, TTL	1.8 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin	±50ppm to ±100ppm	-162 dBc/Hz @ 40MHz
QT81, QS81	5.00 x 7.00 x 2.00	High Temp	5x7 w/ 4pt Mount	CMOS, LVHCMOS, TTL	1.8 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin	±175ppm to ±450ppm	Contact Q-Tech
QT86	5.00 x 7.00 x 2.00	High Temp	5x7 w/ 4pt Mount	CMOS, LVHCMOS, TTL	1.8 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin	±175ppm to ±450ppm	Contact Q-Tech
QT80F, QT85F, QT86F, QT87F, QS80F, QS85F, QS86F, QS87F,	5.00 x 7.00 x 2.00	Military & Avionics	5x7 w/ 4pt Mount	LVDS, LVPECL	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin	±50ppm to ±100ppm	-143 dBc/Hz @ 125MHz
