The RZ/T1 Group has the Arm? Cortex?-R4 Processor with FPU core, which was designed for real-time processing, and is capable of high-speed operation at up to 600 MHz. Furthermore, access does not need to be performed via cache memory, and tightly-coupled memory capable of definitive real-time response processing is built-in, enabling high-speed access from the CPU without passing through the cache memory.
RZ/T1 devices that are equipped with a built-in R-IN engine, an accelerator for industrial Ethernet communications, can perform industrial Ethernet processing without loss of real-time performance by Hardware RTOS (HW-RTOS)
RZ/T1 devices that are equipped with a configurable absolute encoder interface are perfectly suited for precision motion control applications. The range of industry standards that are supported by the configurable encoder interface includes EnDat2.2, BiSS?-C, A-format?, Tamagawa and HIPERFACE? DSL.

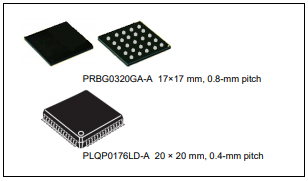

貼片封裝FBGA-320
ARM Cortex R4
32 Bit
工作溫度- 40 C~+ 125 C
推薦用于工業設備與網絡實時運算項目
