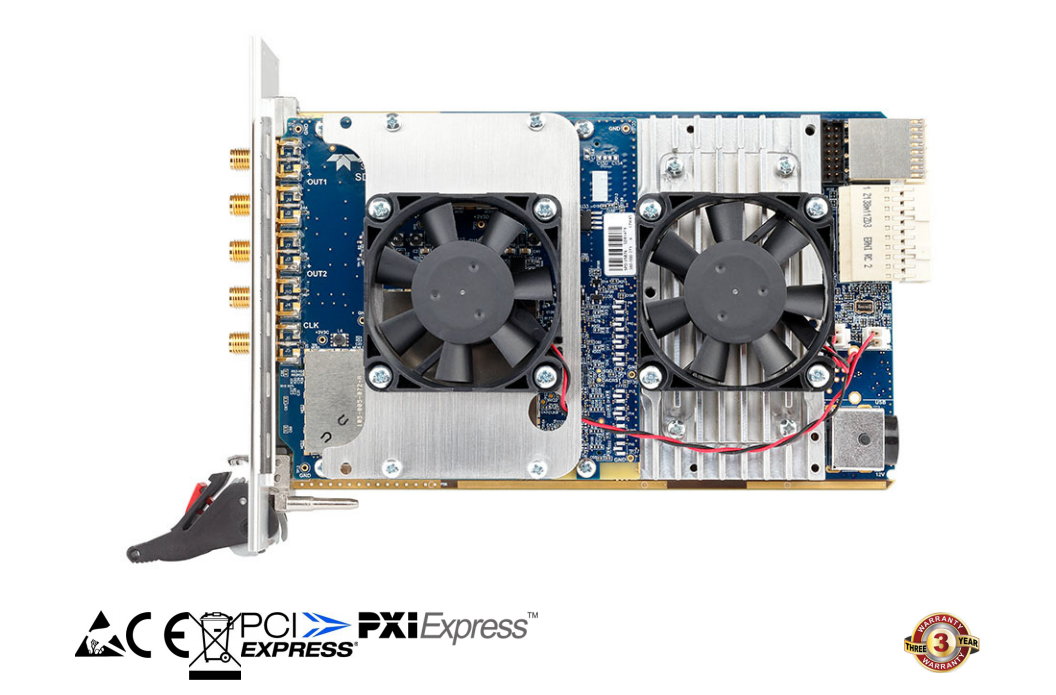

- 產品詳情
帶軟件工具包
Features
? 2 analog output channels ? 2 GHz sample rate per channel ? 14 bits vertical resolution ? Single-ended output ? Differential output ? Output impedance 50 ? single-ended ? Output impedance 100 ? differential ? DC – 1 GHz analog bandwidth ? 1 GHz – 2 GHz analog bandwidth ? Programmable DC-offset ? Internal / external clock reference ? Internal / external clock generation ? PXIe backplane clock reference ? External trigger for sequence control ? Multi-unit synchronization ? 1 GByte data memory ? Sequencing control ? Up to 16 384 segments ? Zero-insertion between segments ? Data interface PXIe and PCIe ? 31 individual markers per segment
Applications
? RADAR ? LIDAR ? Wireless communication ? Scientific instruments ? Particle physics ? Semiconductor test ? ATE ? Test and measurement ? Quantum technology ? Zero-IF IQ systems Advantages ? Host PC form factor options for optimized system’s partitioning. ? Advanced analog front-end and high sample rate for meeting system’s requirements. ? Real-time custom processing solutions for advanced systems. This optimizes cost of ownership. ? SP Devices’ design services are available for fast integration to lower time-to-market.
