- 產品詳情
CPLD FLASH370i 系列 1.6K 門 64 宏電池 5V 44針 PLCC

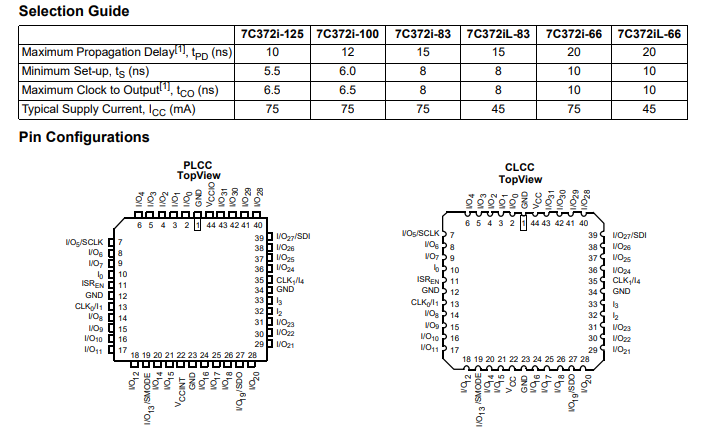

訂購指南：
特性
?64個宏單元在四個邏輯塊
?32個I/O引腳
?五個專用輸入，包括兩個時鐘引腳
?系統內可編程(ISR?)閃存技術
- JTAG接口
?所有I/ o和專用輸入的總線保持能力
?沒有隱藏的延遲
?高速
—fMAX = 125 MHz
- tPD = 10ns
- tS = 5.5 ns
- tCO = 6.5 ns
?完全符合PCI標準
?3.3V或5.0V I/O操作
?可在44引腳PLCC, TQFP和CLCC封裝
?與CY7C371i引腳兼容
Product Technical Specifications
| EU RoHS | Not Compliant |
| Part Status | Obsolete |
| Automotive | No |
| PPAP | No |
| Family Name | FLASH370i |
| Program Memory Type | Flash |
| Number of Logic Blocks/Elements | 4 |
| Number of Global Clocks | 2 |
| Number of Macro Cells | 64 |
| Product Terms | 16 |
| Device System Gates | 1600 |
| Data Gate | No |
| Maximum Number of User I/Os | 32 |
| In-System Programmability | Yes |
| Programmability | Yes |
| Reprogrammability Support | Yes |
| Maximum Clock to Output Delay (ns) | 10 |
| Maximum Propagation Delay Time (ns) | 20 |
| Speed Grade | 66 |
| Individual Output Enable Control | No |
| Minimum Operating Supply Voltage (V) | 4.75 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Typical Operating Supply Voltage (V) | 5 |
| I/O Voltage (V) | 3.3|5 |
| Maximum Operating Current (mA) | 125 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Supplier Temperature Grade | Commercial |
| Mounting | Surface Mount |
| Package Height | 3.68(Min) |
| Package Width | 16.71(Max) |
| Package Length | 16.71(Max) |
| PCB changed | 44 |
| Standard Package Name | LCC |
| Supplier Package | PLCC |
| Pin Count | 44 |
| Lead Shape | J-Lead |
