DMD1012,DMD1028,DMD1037,DMD5029 N溝道MOSFET
發(fā)布于：2025-11-11 09:45:18
品牌名稱：Semelab
重要參數(shù)：
電壓：28V,50V
功率：100W–350W
頻率：175MHz–500MHz
增益：12–20dB

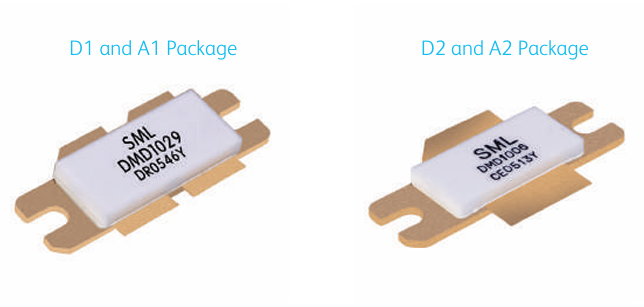

| Device | Min. Output Power (W) | Min. Efficiency (%) | Min. Gain (dB) | Test Frequency (MHz) | Operating Voltage (V) | Package Type | Single-Ended/ Push-Pull | Application Frequency | Active FET Configuration | Breakdown Voltage (V) |
| DMD1006 | 120 | 50 | 16 | 175 | 28 | D2 or A2 | SINGLE-ENDED | 1-200MHz | 6 | 70 |
| DMD1009 | 150 | 50 | 12 | 400 | 28 | D1 or A1 | PUSH-PULL | 1-500MHz | 4+4 | 70 |
| DMD1010 | 125 | 50 | 13 | 400 | 28 | D1 or A1 | PUSH-PULL | 1-500MHz | 4+4 | 70 |
| DMD1012 | 100 | 50 | 13 | 500 | 28 | D1 or A1 | PUSH-PULL | 1-500MHz | 3+3 | 70 |
| DMD1020 | 150 | 50 | 13 | 400 | 28 | D1 or A1 | PUSH-PULL | 1-500MHz | 5+5 | 70 |
| DMD1028 | 300 | 60 | 16 | 175 | 28 | D1 or A1 | PUSH-PULL | 1-400MHz | 6+6 | 70 |
| DMD1029 | 350 | 60 | 16 | 175 | 28 | D1 or A1 | PUSH-PULL | 1-400MHz | 7+7 | 70 |
| DMD1037 | 140 | 50 | 13 | 175 | 28 | D2 or A2 | SINGLE-ENDED | 1-175MHz | 7 | 70 |
| DMD5010 | 125 | 60 | 13 | 400 | 50 | D1 or A1 | PUSH-PULL | 1-500MHz | 4+4 | 125 |
| DMD5012 | 100 | 65 | 15 | 500 | 50 | D1 or A1 | PUSH-PULL | 1-500MHz | 3+3 | 125 |
| DMD5028 | 300 | 60 | 20 | 175 | 50 | D1 or A1 | PUSH-PULL | 1-400MHz | 6+6 | 125 |
| DMD5029 | 350 | 60 | 20 | 175 | 50 | D1 or A1 | PUSH-PULL | 1-400MHz | 7+7 | 125 |
