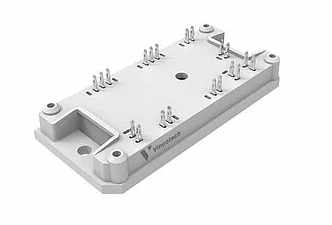

超快整流器功率模塊10-PY120RA060VH01-LJ92I03Y
發(fā)布于：2025-11-24 09:37:51
品牌名稱：Vincotech
重要參數(shù)：
電壓：650V, 1200V, 1700V
電流：10A - 160A
高度：12mm
| Part-no details / Part-no | Sub-Topology | Voltage | Current | Main Chip technology | Height | Isolation |
| in V | in A | in mm |
| 10-PY120RA060VH01-LJ92I03Y | 1ph-Non-Controlled-NTC | 1200 | 60 | Fast diode | 12 | Al2O3 |
| B0-SP12ORA080RO-LM90J48T | 1ph-Non-Controlled-NTC | 1200 | 80 | SiC diode | 12 | Al2O3 |
| 10-PY12ORA100CA-LJ95I03Y | 1ph-Non-Controlled-NTC | 1200 | 100 | Fast diode | 12 | Al2O3 |
| 10-PG12ORA060CD-LJ58I18T | 1ph-Non-Controlled-NTC | 1200 | 60 | SiC diode | 12 | Al2O3 |
| 10-PG12ORA080CD-LJ59I18T | 1ph-Non-Controlled-NTC | 1200 | 80 | SiC diode | 12 | Al2O3 |
| 10-PG12ORA100RO-LJ50I48T | 1ph-Non-Controlled-NTC | 1200 | 100 | SiC diode | 12 | Al2O3 |
| 10-PG07ORA100RO-LJ51I48T | 1ph-Non-Controlled-NTC | 650 | 100 | SiC diode | 12 | Al2O3 |
| 10-PZ07O2A020RO-LH01J88Y | 1ph-Non-Controlled-NTC | 650 | 20 | SiC diode | 12 | Al2O3 |
| 10-PY120RA060VH-LJ92I08Y | 1ph-Cap-Non-Controlled-NTC | 1200 | 60 | Fast diode | 12 | Al2O3 |
| 10-EY126RA040CD-PJ17J98T | 3ph-Rectifier–NTC | 1200 | 40 | SiC diode | 12 | Al2O3 |
| 10-EZ124RA010RO-LS06J88T | 1ph-Non-Controlled-NTC | 1200 | 10 | SiC diode | 12 | Al2O3 |
| 10-EZ124RA030RO-LS08J88T | 1ph-Non-Controlled-NTC | 1200 | 30 | SiC diode | 12 | Al2O3 |
| 10-EZ174RA018RO-LS07J83T | 1ph-Non-Controlled-NTC | 1700 | 18 | SiC diode | 12 | Al2O3 |
| 10-PY12ORA120VH-LJ96I03Y | 1ph-Non-Controlled-NTC | 1200 | 120 | Fast diode | 12 | Al2O3 |
| 10-PG07ORA160RF-LJ53I88T | 1ph-Non-Controlled-NTC | 650 | 160 | Fast diode | 12 | Al2O3 |
| 10-FY076RA070VH-L824J58 | 3ph-Rectifier-NTC | 650 | 70 | Fast diode | 12 | Al2O3 |
