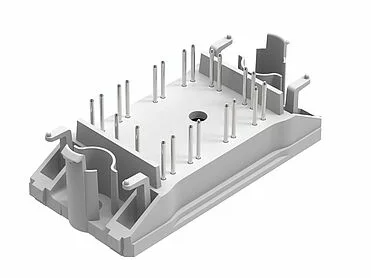

H橋模塊V23990-P627-F89-PM
發(fā)布于：2025-11-24 09:57:47
品牌名稱(chēng)：Vincotech
重要參數(shù)：
電壓：650V, 1200V
電流：15A - 120A
高度：12mm，17mm
主要芯片：GaN E-Mode，IGBT4 HS，IGBT fast，IGBT H5，SiC MOSFET
| Part-no details / Part-no | Sub-Topology | Product line | Voltage | Current | Main Chip technology | Height | Isolation |
| in V | in A | in mm |
| 10-FY074PC010GN-PL85F08 | H-Bridge-OE-KE-Cap-NTC | fastPACK 1 GaN | 650 | 95 | GaN E-Mode | 12 | Al2O3 |
| V23990-P627-F89-PM | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 15 | IGBT4 HS | 17 | Al2O3 |
| V23990-P629-F48-PM | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | 12 | Al2O3 |
| V23990-P729-F49-PM | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | 17 | Al2O3 |
| V23990-P627-F88-PM | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 15 | IGBT4 HS | 12 | Al2O3 |
| 10-FY074PA100SM01-L583F18 | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | 12 | Al2O3 |
| 10-PY074PA100SM01-L583F18Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | 12 | Al2O3 |
| V23990-P729-F48-PM | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | 12 | Al2O3 |
| 10-PY124PA080SH-L589F48Y | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 80 | IGBT4 HS | 12 | Al2O3 |
| V23990-P623-F58-PM | H-Bridge-KE-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | 12 | Al2O3 |
| 10-PC074PA075SM-L625F06Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | 12 | Al2O3 |
| 10-FZ074PA030SM-L623F08 | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 30 | IGBT H5 | 12 | Al2O3 |
| 10-FZ074PA075SM-L625F08 | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | 12 | Al2O3 |
| 10-EZ124PA018MR-LR09F08T | H-Bridge-KE-NTC | fastPACK E1 SiC | 1200 | 50 | SiC MOSFET | 12 | Al2O3 |
| 10-PC124PA040SH-P629F41Y | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | 12 | Al2O3 |
| 10-PZ124PA036MR-L629F18Y | H-Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 40 | SiC MOSFET | 12 | Al2O3 |
| 10-FY074PA100SM-L583F08 | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | 12 | Al2O3 |
| 10-EZ124PA020MS-LQ18F78T | H-Bridge-OE-KE-NTC | fastPACK E1 SiC | 1200 | 70 | SiC MOSFET | 12 | Al2O3 |
| 10-FY124PA080SH-L589F48 | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 80 | IGBT4 HS | 12 | Al2O3 |
| 10-FZ074PA050SM-L624F08 | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | 12 | Al2O3 |
| 10-FZ074PA050RG-L624F88 | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 50 | IGBT fast | 12 | Al2O3 |
| 10-PY074PA100SM-L583F08Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 1 | 650 | 100 | IGBT H5 | 12 | Al2O3 |
| 10-FY124PA040SH-L588F48 | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 40 | IGBT4 HS | 12 | Al2O3 |
| 10-PY124PA040SH-L588F48Y | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 40 | IGBT4 HS | 12 | Al2O3 |
| 10-EY124PA016ME-LP49F18T | H-Bridge-OE-KE-NTC | fastPACK E2 SiC | 1200 | 80 | SiC MOSFET | 12 | Al2O3 |
| 10-PZ074PA075RG-L625F88Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT fast | 12 | Al2O3 |
| 10-PZ124PA062MR-L628F18Y | H-Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 20 | SiC MOSFET | 12 | Al2O3 |
| 10-FY124PA080F2-L589F38 | H-Bridge-KE-OE-NTC | fastPACK 1 | 1200 | 80 | IGBT fast | 12 | Al2O3 |
| 10-EY124PA026ME-LP48F08T | H-Bridge-OE-KE-NTC | fastPACK E2 SiC | 1200 | 55 | SiC MOSFET | 12 | Al2O3 |
| 10-EY124PA016ME01-LP49F16T | H-Bridge-OE-KE-NTC | fastPACK E2 SiC | 1200 | 80 | SiC MOSFET | 12 | AlN |
| 10-EZ124PA030MS-LQ17F78T | H-Bridge-OE-KE-NTC | fastPACK E1 SiC | 1200 | 50 | SiC MOSFET | 12 | Al2O3 |
| 10-FZ124PA040F2-P629F38 | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 40 | IGBT fast | 12 | Al2O3 |
| 10-PC124PA026ME-L629F91Y | 2xHalf Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 55 | SiC MOSFET | 12 | Al2O3 |
| 10-F4074PA030SM-L623F04 | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 30 | IGBT H5 | 17 | Al2O3 |
| 10-EZ124PA016ME-LQ18F18T | H-Bridge-OE-KE-NTC | fastPACK E1 SiC | 1200 | 70 | SiC MOSFET | 12 | Al2O3 |
| 10-PD074PA075SM-L625F07Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | 17 | Al2O3 |
| 10-EZ124PA032ME-LQ17F18T | H-Bridge-OE-KE-NTC | fastPACK E1 SiC | 1200 | 40 | SiC MOSFET | 12 | Al2O3 |
| 10-PZ124PA075ME03-L627F28Y | 2xHalf Bridge-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 20 | SiC MOSFET | 12 | Al2O3 |
| 10-PZ124PA032ME03-L629F98Y | 2xHalf Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 40 | SiC MOSFET | 12 | Al2O3 |
| 10-PC124PA030MS-L629F76Y | 2xHalf Bridge-OE-KE-Cap-NTC | fastPACK 0 SiC | 1200 | 48 | SiC MOSFET | 12 | Al2O3 |
| 10-PZ074PA030SM-L623F08Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 30 | IGBT H5 | 12 | Al2O3 |
| 10-PZ074PA050SM-L624F08Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | 12 | Al2O3 |
| 10-PZ074PA075SM-L625F08Y | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | 12 | Al2O3 |
| V23990-P629-F48Y-PM | H-Bridge-KE-NTC | fastPACK 0 | 1200 | 40 | IGBT4 HS | 12 | Al2O3 |
| V23990-P623-F59-PM | H-Bridge-KE-NTC | fastPACK 0 | 650 | 50 | IGBT H5 | 17 | Al2O3 |
| 10-EY124PA011ME-LP40F18T | H-Bridge-OE-KE-NTC | fastPACK E2 SiC | 1200 | 120 | SiC MOSFET | 12 | Al2O3 |
| 10-FX074PA075SM-L625F07 | H-Bridge-KE-OE-Cap-NTC | fastPACK 0 | 650 | 75 | IGBT H5 | 17 | Al2O3 |
