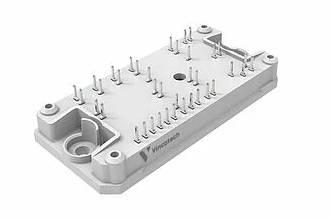

PIM + PFC (CIP) 功率模塊10-FE06PPA020SJ01-LK23B58Z

發布于：2025-11-24 10:30:28

品牌名稱：Vincotech

重要參數：

電壓：600V-650V

電流：4A - 50A

高度：12mm,16mm,17mm


  • 產品詳情

Vincotech 的 PIM + PFC (CIP) 是一款集成 整流器(PIM)、逆變器(PIM)和有源功率因數校正(PFC) 的智能功率模塊，主要應用于 工業電機驅動、伺服系統、變頻器及可再生能源設備。

Part-no details / Part-noSub-TopologyProduct lineVoltageCurrentMain Chip technologyHeightIsolation
in Vin Ain mm
10-PG06PPA020SJ-LJ01B08TCIP-OE-Shunt-NTCflowPIM 1 + PFC60020IGBT fast12Al2O3
10-0B06PPA010RC01-L025A19CIP-OE-NTCflowPIM 0B + PFC60010IGBT RC17Al2O3
10-FE06PPA020SJ01-LK23B58ZCIP-OE-NTCflowPIM 1 + PFC60020IGBT fast12Al2O3
10-FE06PPA030SJ03-LK24B18ZCIP-OE-NTCflowPIM 1 + PFC60030IGBT fast12Al2O3
10-F006PPA010SB03-M683B50CIP-OE-Shunt-NTCflowPIM 0 + PFC60010IGBT317Al2O3
10-PG06PPA030SJ-LJ02B08TCIP-OE-Shunt-NTCflowPIM 1 + PFC60030IGBT fast12Al2O3
10-0B06PPA010RC02-L025A89CIP-OE-NTCflowPIM 0B + PFC60010IGBT RC17Al2O3
10-P106PPA050SJ-PD54B09YCIP-OE-Shunt-NTCflowPIM 1 + PFC60050IGBT fast17Al2O3
10-PY07PPA030I703-PQ72E68TIP-OE-Shunt-NTCflowPIM 1 + PFC65030IGBT712Al2O3
10-F006PPA020SB02-M685B30CIP-OE-Shunt-NTCflowPIM 0 + PFC60020IGBT F517Al2O3
10-PG06PPA030SJ02-LH92E08TIP-OE-NTCflowPIM 1 + PFC60030IGBT fast12Al2O3
10-PG06PPA030SJ04-LJ02B03TCIP-OE-Shunt-NTCflowPIM 1 + PFC60030IGBT fast12Al2O3
10-FY07PPA050I702-LK25B28ZCIP-OE-NTCflowPIM 1 + PFC65050IGBT712Al2O3
10-FE06PPA020SJ-LJ01B08ZCIP-OE-Shunt-NTCflowPIM 1 + PFC60020IGBT fast12Al2O3
10-FZ06PPA030SJ-LS54E08IP-OE-Shunt-NTCflowPIM 0 + PFC60030IGBT fast12Al2O3
10-PG06PPA050SJ01-LH54E08TIP-OE-Shunt-NTCflowPIM 1 + PFC60050IGBT fast12Al2O3
10-PG06PPA050SJ-LJ04B08TCIP-OE-Shunt-NTCflowPIM 1 + PFC60050IGBT fast12Al2O3
10-PG06PPA050SJ02-LH94E08TIP-OE-NTCflowPIM 1 + PFC60050IGBT fast12Al2O3
10-P006PPA020SB01-M685B10YCIP-OE-Shunt-NTCflowPIM 0 + PFC60020IGBT317Al2O3
10-FE06PPA030SJ04-LJ02B03ZCIP-OE-Shunt-NTCflowPIM 1 + PFC60030IGBT fast12Al2O3
10-P006PPA010SB04-M683B30YCIP-OE-Shunt-NTCflowPIM 0 + PFC60010IGBT F517Al2O3
10-P006PPA015SB03-M684B30YCIP-OE-Shunt-NTCflowPIM 0 + PFC60015IGBT F517Al2O3
10-P006PPA020SB02-M685B30YCIP-OE-Shunt-NTCflowPIM 0 + PFC60020IGBT F517Al2O3
10-PG06PPA030SJ01-LH52E08TIP-OE-Shunt-NTCflowPIM 1 + PFC60030IGBT fast12Al2O3
10-P006PPA020SB03-M685B09YCIP-OE-Shunt-NTCflowPIM 0 + PFC60020IGBT3 LL17Al2O3
10-0B06PPA010RC-L025A09CIP-OE-NTCflowPIM 0B + PFC60010IGBT RC17Al2O3
10-F006PPA010M701-LT23B79CIP-OE-NTCflowPIM 0 + PFC65010IGBT M717Al2O3
10-R106PPA020SB01-M934ACIP-OE-NTCflow90PIM 1 + PFC60020IGBT3 LL
Al2O3
10-F006PPA015SB04-M684B09CIP-OE-Shunt-NTCflowPIM 0 + PFC60015IGBT3 LL17Al2O3
10-F006PPA020SB03-M685B09CIP-OE-Shunt-NTCflowPIM 0 + PFC60020IGBT3 LL17Al2O3
10-P006PPA010SB-M683BYCIP-OE-Shunt-NTCflowPIM 0 + PFC60010Infineon CoolMOS鈩17Al2O3
10-0B06PPA004RC-L022A09CIP-OE-NTCflowPIM 0B + PFC6004IGBT RC17Al2O3
10-0B06PPA006RC-L023A09CIP-OE-NTCflowPIM 0B + PFC6006IGBT RC17Al2O3
10-F006PPA010SB-M683BCIP-OE-Shunt-NTCflowPIM 0 + PFC60010IGBT3 LL17Al2O3
V23990-K203-B10-PMCIB-KE-NTCMiniSKiiP PFC 160020IGBT316Al2O3
10-FE06PPA050SJ01-LH54E08ZIP-OE-Shunt-NTCflowPIM 1 + PFC60050IGBT fast12Al2O3
