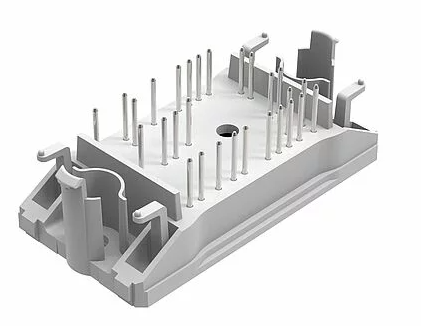

單相PFC功率模塊10-F0070TA030S5-P982D64
發(fā)布于：2025-11-24 13:59:48
品牌名稱：Vincotech
重要參數(shù)：
電壓：600V-650V
電流：15A - 50A
高度：12mm,17mm
| Part-no details / Part-no datasheet | Sub-Topology | Product line | Voltage | Current | Main Chip technology | Housing family | Height | Isolation |
| in V | in A | in mm |
| 10-F0070TA030S5-P982D64 | Single Boost PFC-CSC-Shunt-Cap-NTC | flowPFC 0 | 650 | 30 | IGBT S5 | flow 0 | 17 | Al2O3 |
| 10-F0072TA030S5-P982D54 | Dual Boost PFC-CSC-Shunt-Cap-NTC | flowPIM? 0 | 650 | 30 | IGBT S5 | flow 0 | 17 | Al2O3 |
| 10-FZ062TA080P7-P980D78 | Dual Boost PFC-Half Controlled-Shunt-Cap-NTC | flowPFC 0 | 600 | 20 | Infineon CoolMOS? P7 | flow 0 | 12 | Al2O3 |
| 10-F0062TA080P7-P980D79 | Dual Boost PFC-Half Controlled-Shunt-Cap-NTC | flowPFC 0 | 600 | 20 | Infineon CoolMOS? P7 | flow 0 | 17 | Al2O3 |
| 10-F0072TA040S503-P983D74 | Dual Boost PFC-CSC-Shunt-Cap-NTC | flowPFC 0 CD | 650 | 40 | IGBT S5 | flow 0 | 17 | Al2O3 |
| 10-FZ062TA050SM-P987D13 | Dual Boost PFC-CSC-Shunt-Cap-NTC | flowPFC 0 CD | 650 | 50 | IGBT H5 | flow 0 | 12 | Al2O3 |
| 10-FZ062TA099P7-P980D08 | Dual Boost PFC-Half Controlled-CSE-Shunt-Cap-NTC | flowPFC 0 CD | 600 | 15 | Infineon CoolMOS? P7 | flow 0 | 12 | Al2O3 |
